Out of stock
FRG Radialseal Air Cleaner, G120417 - G120417

Move your mouse over the image or click to enlarge

Donaldson

# G120417

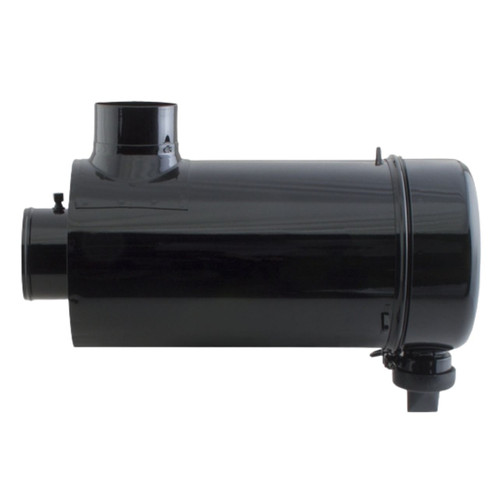

FRG Radialseal Air Cleaner, G120417

$1,290.78
$1,122.42 excl. GST
Adding to cart… The item has been added
Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

Call 0508 677 704 or Visit Instore

SKU:
G120417

PRODUCT INFORMATION

  • Overall Length = 541.9 mm (21.33 inch)
  • Inlet Diameter = 127 mm (5.00 inch)
  • Body Diameter Maximum = 300 mm (11.81 inch)
  • Outlet Diameter = 127 mm (5.00 inch)
  • Body Length = 484 mm (19.06 inch)
  • Rated Flow LR = 11.6 m³/min (410 cfm)
  • Rated Flow MR = 13 m³/min (459 cfm)
  • Rated Flow HR = 14.9 m³/min (526 cfm)
  • Restriction LR = 14.91 mbar (5.98 inch H2O)
  • Restriction MR = 19.91 mbar (7.99 inch H2O)
  • Restriction HR = 24.91 mbar (10 inch H2O)

Part No

G120417

Brand

Donaldson
