Air Tank Triple Port 46L
Main Port A = 3/4'' Main Port C = 3/4'' Mian Port D = 3/4'' Drain Port E = 1/4'' End Port F = 3/8''
Main Port A = 3/4'' Main Port C = 3/4'' Mian Port D = 3/4'' Drain Port E = 1/4'' End Port F = 3/8''

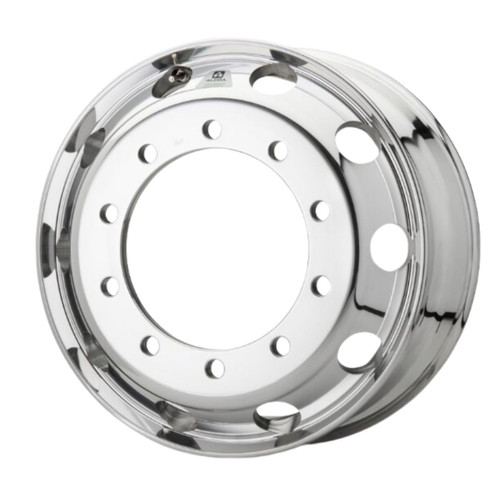

The advantages of Alcoa include: Major weight savings for more legal payload capacity Increased fuel efficiency One piece forged strength Corrosion resistance that never needs painting Cool, true running to extend tyre and brake life Brilliant good...
-
Application = Truck & Trailer Size (mm) = 419 x 178
Spigot (mm) = 239.78 Brake Size (mm) = 419 x 178 Inside Diameter (mm) = 419 Brake Face Width (mm) = 193.3 Drum Depth (mm) = 208 PCD (mm) = 279 Hole Diameter (mm) = 19.8 No. of Bolt Holes = 5 + 6
Cable end (left side of diagram) = Bayonet socket ISO 72585-B1-3.1-Sn/K1 4-pin Cable end (right side of diagram) = Modulator 5-pin
12 of 3399 products
