Enerpac

# P-392

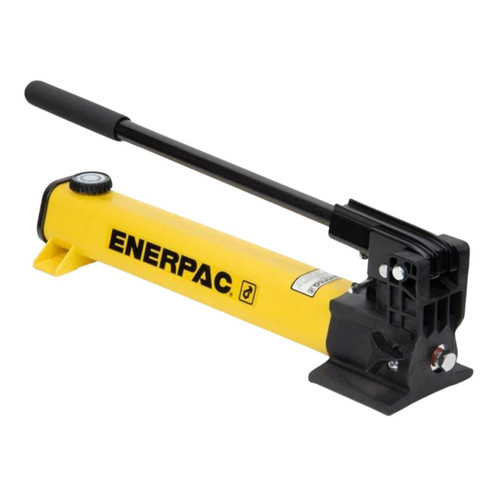

Enerpac Two Speed Hand Pump 700 Bar

$1,325.42
$1,152.54 excl. GST
Adding to cart… The item has been added
Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

SKU:
P-392

PRODUCT INFORMATION

Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar). The durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base offers an unrivalled combination of strength, weight, and resistance to corrosion.
Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it’s needed most before the pump automatically switches to the low flow high-pressure stage.

Lightweight and compact design Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps Lower handle effort to minimize operator fatigue Large oil capacities to power a wide range of cylinders or tools Non-conductive fiberglass handle for operator safety Internal pressure relief valve for overload protection

  • Maximum Operating Pressure (psi) = 10,000
  • Pressure Rating (psi) 1st Stage = 200
  • Pressure Rating (psi) 2nd Stage = 10,000
  • Cylinder Compatability = Single-acting
  • Pump Type = Two Speed
  • Reservoir Capacity (in3) = 55
  • Usable Oil Capacity (in3) = 55
  • Maximum Flow at Rated Pressure = 0.151 in3/stroke
  • Oil Displacement per Stroke (in3) 1st Stage = 0.687
  • Oil Displacement per Stroke (in3) 2nd Stage = 0.151
  • Maximum Handle Effort (lbs) = 93
  • Piston Stroke (in) = 1
  • Valve Operation Manual
  • Power Source = Manual
  • Weight (lbs) = 9

Part No

P-392

Brand

Enerpac
