Battery Master Switch - 080990

Move your mouse over the image or click to enlarge

# 080990

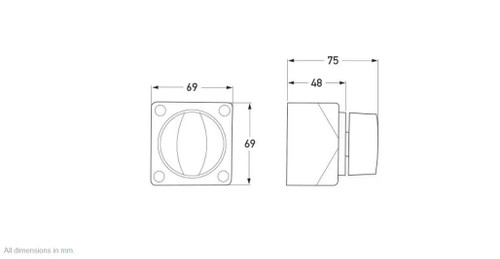

Battery Master Switch

$11.44
$9.95 excl. GST
Adding to cart… The item has been added
Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

Call 0508 677 704 or Visit Instore

SKU:
080990

PRODUCT INFORMATION

Suitable for cars and medium sized trucks. Complete with removable key. For interrupting circuits (prevents theft and short circuit).

Features

  • Mounting = 24mm diameter opening
  • Maximum load = 12V, 1000A for up to 10 seconds, 24V, 500A for up to 10 seconds.
  • Maximum continuous load = 12/24V, 150A at a maximum ambient temperature of 80°C with 35mm2 lead, connected with ring-type terminals.
  • Termination = 2x 10mm studs
  • Note = Switch not designed for Marine applications.

Part No

080990

Maximum Current

12v 1000A For Up To 10 Seconds / 24V 500A For Up To 10 Seconds

Mounting

24mm Diameter Opening

Terminals

2 x 10mm Studs
