PRODUCT INFORMATION
The VDO 362081001002K is a high-performance pressure sender designed for accurate monitoring of oil or air pressure in automotive, marine, and industrial systems. With a dual-station insulated return and a pressure range up to 10 Bar (150 psi), this sender is ideal for setups requiring reliable data transmission to one or two gauges.
Features
-
Precise pressure monitoring for critical systems
-
Dual-station output supports two gauges simultaneously
-
Insulated return for flexible grounding in non-metallic or isolated installations
-
Compact brass housing for easy integration in tight spaces
-
Compatible with VDO electric pressure gauges (10–180 Ohm range)
-

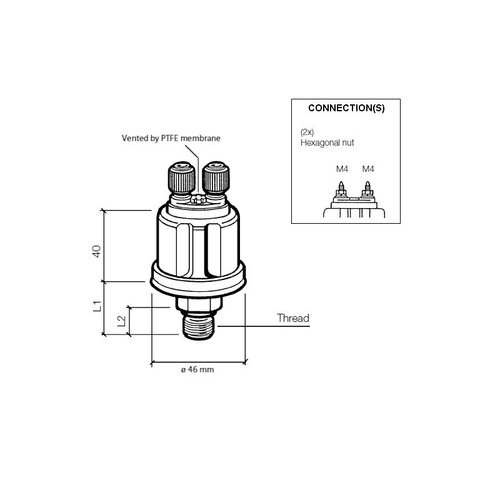

Length thread + nut (L1) = 19.5mm
-
Thread Length (L2) = 11mm
-
Torque = 30Nm
Applications
-
Marine engine and flybridge setups
-
Automotive oil and air pressure systems
-
Industrial compressors and hydraulic equipment
Part No
362081001002KBrand
VDOConnection
Dual terminal for twin gauge setupsMaximum Pressure
Maximum Pressure Tolerance: 30 Bar for up to 2 secondsThread Size
1/8'' x 27 NPTFOperating Temperature Range
–25°C to +100°CElectrical Resistance
10–180 Ohms (non-linear curve)Pressure Range
0–10 BarCompatability
Media Compatibility: Suitable for oil and air systemsWrite a Review
