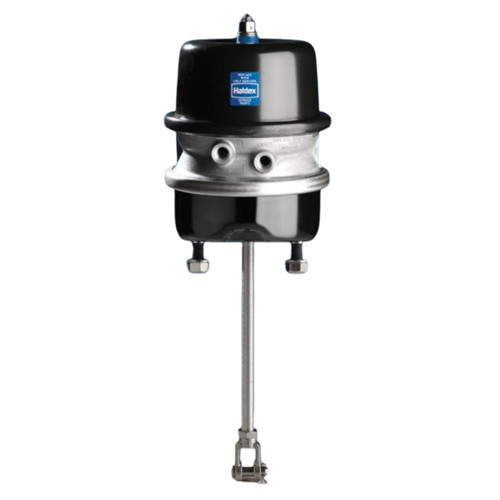

Spring Brake Gold Seal W/Clevis (Haldex) - 3636GC

Move your mouse over the image or click to enlarge

# 3636GC

Spring Brake Gold Seal W/Clevis (Haldex)

$599.78
$521.55 excl. GST
Adding to cart… The item has been added
Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

Call 0508 677 704 or Visit Instore

SKU:
3636GC

PRODUCT INFORMATION

  • Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue

  • Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life

  • World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F

  • Rugged Service Housing; 9 gauge steel, powder coated

  • Orange Alert® Stroke Indicator

  • Self-piloting Dust Shield

  • Sizes to fit all drum brake applications

  • Stroke Type = Standard

  • Available Stroke = 3.00", 76mm

  • A (Length from mounting bracket to end of Spring Housing) = 10.7", 272mm

  • B (Length of Piggyback) = 8.0", 203mm

  • C (Dimension at rolled Spring Housing flange) = 9.1", 231mm

Part No

3636GC
