PRODUCT INFORMATION

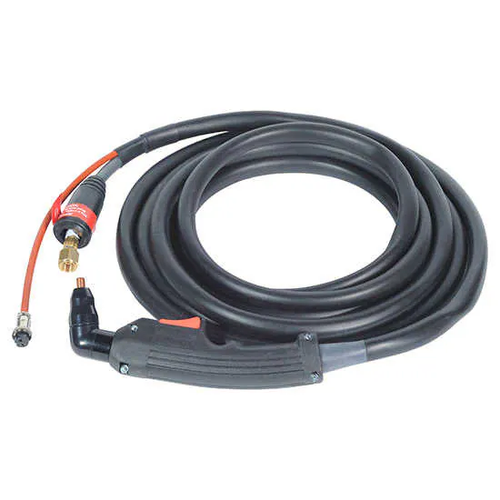

- The Smoothcut Plasma 25 torch is a 6m torch designed for plasma cutting applications up to 40 amps, and for contact cutting up to 9mm in thickness. This torch is fitted with a two part connector and is suitable for use with the Magmate Cut 25 Plasma Power Source (MAGCUT25) and the older style Smoothcut Plasma 40 Power Source with a two part connector (CUT40).
- Gas/air flowrate: 100L/min
- Duty Cycle: 60% @ 40A
- Maximum current: 40A
- Cooling requirement: Air
- Gas type: Air or Nitrogen
- Gas/air operating pressure: 4.8 - 5.0 bar
