Drum Brake Chambers

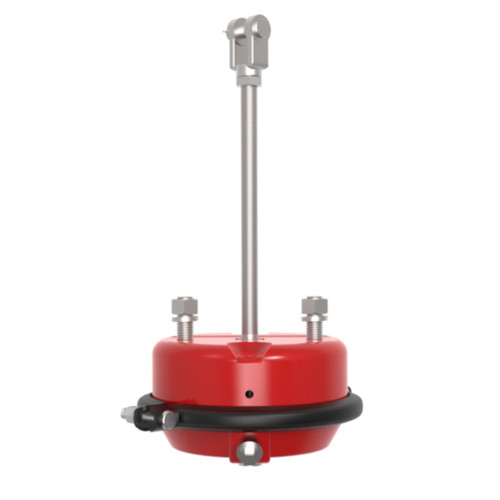

#MBC30

Service Chamber T30 Meritor Red

The Meritor MBC30 is a robust service brake chamber engineered for use in air brake systems on trucks, trailers, and buses. As part of Meritor’s Red Series, it features a Type 30 diaphragm size, offering consistent braking force and long-term durability...

#MBC2430

Spring Brake 24/30 Meritor Red

This is a high-quality spring brake chamber engineered for commercial vehicles requiring dependable braking under demanding conditions. Part of Meritor’s Red Series, this chamber features a Type 24 service chamber paired with a Type 30 emergency/spring...

#MBC24

Service Chamber T24 Meritor Red

The MBC24 is a double-diaphragm spring brake chamber engineered for use in air brake systems on commercial vehicles. It integrates both service braking (via air pressure) and emergency/parking braking (via a powerful internal spring), ensuring safe and...

#30RS

Remote Pull Type 30 - Haldex

-

#2030GC

Spring Brake W/Clevis

-

#30S/LS-TSE

Service Chamber Type 30 Long Stroke

-

#925/494/960/0

16/24 Spring Brake

Bolt lengths = 43.0 mm Bolt threads = M16 x 1.5 Calculated Volume (dm³) = 21.2956 Cooling = Air Distance between bolts = 120.6 mm Max. operating pressure = 10.0/10.0 bar Nominal diameter = 8.5 mm Output force = 6600 N Port thread 11 = M16 x 1.5 Port...

#925/490/755/0

Spring Brake T20/24 Uni

Bolt lengths = 43.0 mm Bolt threads = M16 x 1.5 Calculated Volume (dm³) = 21.692 Comments = Universal-Tristop-Zylinder needs additional accessories (Link): 423 000 901 2 Distance between bolts = 120.6 mm Max. operating pressure = 10.2/8.5 bar Output...

#2024GC

Spring Brake 2024 GoldSeal (Haldex)

Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life World Class Diaphragm; High quality rubber compound, resistant...

#2024GC-TSE

Spring Brake Gold Seal W/Clevis 2.5''

Chamber Type = 20-24 Stroke = 2.5" Service Volume (in3) = 64 Emergency Volume (in3) = 98 Weight (lbs) = 18.59 A = 6.9'' B = 4.75'' C = 9.2'' D = 7.4'' E = 6.3'' F = 7.75" Inlet Ports = 3/8-18 NPTF Mounting Studs = 5/8-11UNC

#2430GC

Spring Brake GOLDSEAL W/Clevis 2.5" (Haldex) Spring Brake GOLDSEAL W/Clevis 2.5" (Hal...

-

#1216PB

Wedge Piggyback 1216 A/Lok

-
