PRODUCT INFORMATION

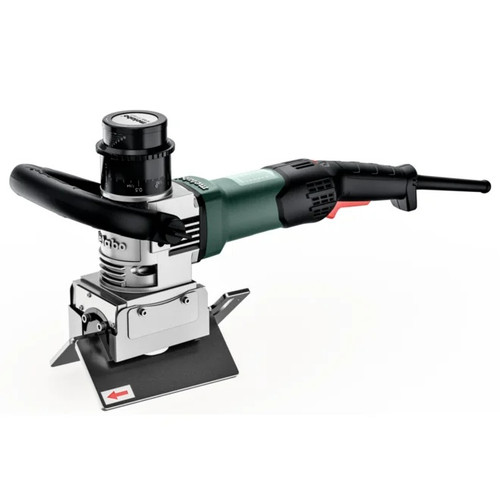

- Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation
- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
- Precise setting of the chamfer angle directly via the guide plates
- Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
- Guide stop for a uniform finish and high quality surface finish when processing straight edges
- Controlled working by virtue of large-scale guide plates
- Stop roller to guide along pipes for easy preparation of weld seams
- Bail handle adjusts without tools for secure, even guiding
- Metabo Marathon-motor with patented dust protection for long service life
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
- Electronic overload protection, soft start and restart protection
- Slim design for ideal handling
- Protection of the user by virtue of lateral plates for conveying the chips
- With metaBOX, the intelligent solution for transport and storage
Part No
KFMV17-15FBrand
MetaboCable length
3.9mOutput Power
880 WVibration
5 m/s²Packaging Dimensions
0.17m Width x 0.46m Depth x 0.28m HeightGross Weight (kg)
6.30No-load Speed
6200 - 12000 rpmSound pressure level
99 dB(A)Rated input power
1700 WType of edges
ChamferChamfer angles
0 - 90 °Max. chamfer width 45°
21 mm / 13/16 ''Max. chamfer height at 45°
15 mm / 19/32 ''Grading of cutting depth setting
0.1 mm / 0.00394 ''Curves smallest outer Ø
100 mm / 3 15/16 ''Write a Review
