PRODUCT INFORMATION

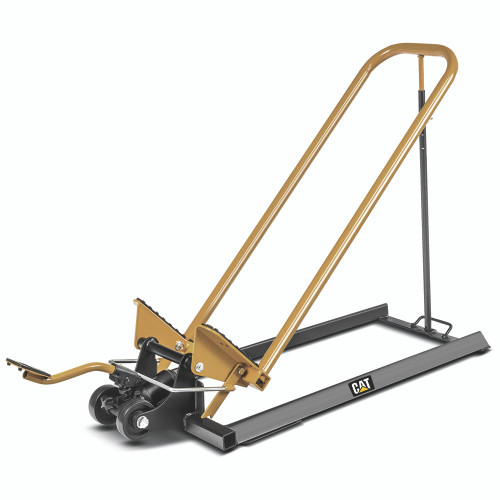

- Cat® safety side lift tractor mower jack.
- Eliminates body exposure directly underneath mower like traditional jacks. Heavy duty double bar lifting platform lifts most traditional and zero turn mowers.
- Adjustable pin lock safety bar supports 272 KG. Side lift weight.
- Comfortable quick under deck cleaning, inspection and assorted maintenance.
- Effortless foot pedal hydraulic lifting.
- Rubber shock pads absorb weight and protects mower from scratching.
- Heavy duty powder coated painted finish minimizes scratching and exposure to the elements.
- Max rear wheel track: 1030mm, wheel width: 280mm
Part No
980220Lifting Range
Up to 890mm (Side Lift)Weight
26kg net weightLift
Max lift height = 890mm @ 45-degree angle, max lift load: 272 KGOverall dimensions
Flat on ground 470mm (W) x 1140mm (L) x 270mm (H)Includes
1x cambuckle strap for securing load and wall hanging storage mount bracketWrite a Review
