PRODUCT INFORMATION

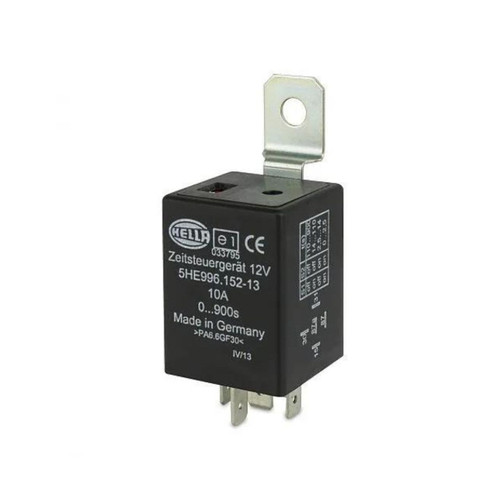

Relay with manually adjustable drop-out delay function, 0 – 900 seconds.
Note
- Relay with manually adjustable drop-out delay function, 0 – 900 seconds.
- Applying +ve power to terminal 15 will close the n/o relay contacts.
- Disconnecting +ve power from terminal 15 will then activate the timer feature, relay contacts 30 & 87 opening following the pre-adjusted time 0 – 900 seconds. +ve to terminal 30 is required for timer operation, removing will cancel timer sequence and open contacts 30 & 87.
Part No
3086-24VBrand
HellaBracket
YesFunction
Change-overProtection
IP 50 (Protection against dust)Voltage
24VPins
5 PinMaximum load
Contact opened 10A. Contact closed 20A/30minWrite a Review
