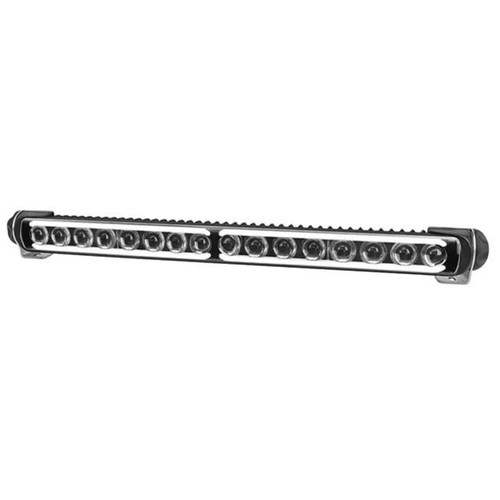

Hella LED Light Bar 470 High Beam

After the success of the HELLA LED Light Bar 350, HELLA is introducing the longer and brighter brother, the LED Light Bar 470. The new lamp features all the outstanding properties of the previous model plus an additional four high performance automotive standard LED’s and a maximum luminous intensity of 166,000 candela at a power consumption of only 35 watts.

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref. 25 with 1 lux at approx. 330 metres) and Pencil Beam (Ref. 37.5 with 1 lux at approx. 410 metres). With only 950g weight the Light Bar is particularly popular for roof mount applications on ATV’s and Off-road vehicles.

The non corrosive, thermally conductive housing is highly resistant to degradation and due to its slim profile, this streamline Light Bar is ideal for applications where aerodynamic styling are a valued attribute. The flexible, adjustable mounting system ensures easy installation. The Light Bar features a Multivolt™ circuit for optimum brightness at a wide range of input voltages from 9 to 33 volts and is fully road legal with ECE approval.

• Mounting = Horizontal mounting. Upright or pendant.

• Voltage = Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

• Power Consumption = 35W

• Maximum Luminous Intensity = 113,000 candela

Protection

• Reverse polarity and transient spike protection.

• IP 6K7 (Protection against dust and temporary water immersion)

• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

• Cable Length = Pre-wired with 2.5m of tinned multi-core cable.
