PRODUCT INFORMATION

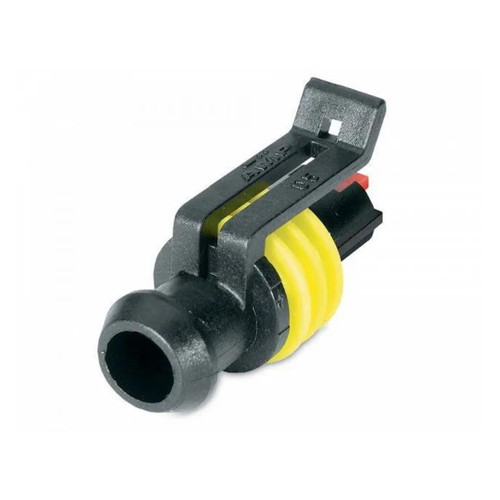

Super seal connector housings were developed to satisfy increasing requirements for safety and reliability in the field of electrical connections. The connectors can be connected to existing components and used with the equipment presently in use in the automotive industry (sensors, oil pressure sensors, water temperature monitoring circuits, etc.).
Features
- IP 67 (Protection against dust and temporary water immersion)
- Robust and reliable contact. Max. current 14A.
- Prefabricated secondary lock ensures that the terminal is plugged into the housing correctly and prevents slipping out of the connector.
Part No
4982-SBrand
HellaMaximum Current
14APack Quantity
PK4Type
2 PoleTemperature Range
-40°C to 125°CTerminals
Male terminal for socket = Brass, tinned | Female terminal for plug = Phosphor bronze, tinnedNote
For ‘P’ and ‘S’ versions only the bare connector is supplied. Select appropriate seals and terminals to suit. Plug and socket kits come complete with terminals and seals.Connector
Housing and secondary lock - polyamide 6.6 glass filledSeal Material
Made from silicon rubber. Seals shaped for easy insertion into connector. The hoop rings in the crimping area ensure excellent pull relief for the terminals. Suitable with insulation 1.5-33mm diameter.Resistant to
Ozone, salts (CaCI2-NaCI), petrol, diesel fuel, anti-freeze, ATM and engine oil.Insulation resistance
Minimum 200MΩInsert force
Maximum 8NContact resistance
Maximum 3MΩConnector Compliance
IP 67 (Protection against dust and temporary water immersion)Current rating
