Enerpac

# RC-104

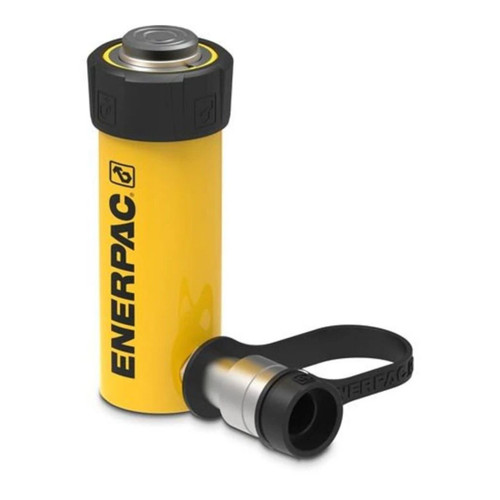

Enerpac Single Acting GP Cylinder 105mm Stroke 10T

$1,061.13
$922.72 excl. GST
Adding to cart… The item has been added

Out of stock

Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

SKU:
RC-104

PRODUCT INFORMATION

RC-TRIO is the next generation of the legendary Enerpac RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.

A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.

Bearing system with composite wear bands for optimal sideload resistance Strengthened stop ring improves durability and side load resistance Trio Hybrid pre-tensioned spring system provides faster retraction High-grade polyethylene seals for low wear and long service life Plunger wiper reduces contamination, extending cylinder life. Collar and plunger threads and base mounting holes enable easy fixturing (on most models) Standard certified lifting eyes on cylinder models above 55 lbs. (25 kg) weight. Interchangeable with optional CHM6 carrying handle Designed for use in all positions Baked enamel finish for increased corrosion resistance Includes CR400 coupler, dust cap and collar thread protector

  • Maximum Operating Pressure (psi) = 10,000
  • Capacity Class (tonnage) = 10
  • Maximum Cylinder Capacity Advance (short tons) = 11.2
  • Stroke (in) = 4.13
  • Collapsed Height A (in) = 6.75
  • Extended Height B (in) = 10.88
  • Return Type = Single-Acting, Spring Return
  • Plunger Type = Solid Material = Steel
  • Cylinder Effective Area Advance (in2) = 2.24
  • Oil Capacity Advance (in3) = 9.23
  • Surface Treatment = Paint
  • Coupler = CR400 Coupler
  • Weight (lbs) = 7.2

Part No

RC-104

Brand

Enerpac
