# TA20/15

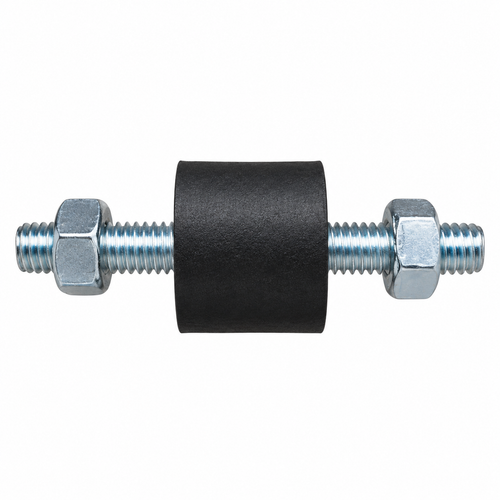

Cotton Reel Mount Rubber 20 x 15 x 6mm c/w Nuts

(1 review)
$16.64
$14.47 excl. GST
Adding to cart… The item has been added
Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

SKU:
TA20/15

PRODUCT INFORMATION

  • Cylindrical mountings for a wide range of applications.
  • They can be loaded either in compression or shear taking into consideration individual demands for actual applications.

Part No

TA20/15

Compression Max Deflection

1.2mm

Compression Max Load

16kg

Fastener

M6

Max Bolt Torque Nm

8.3

Shear Max Deflection

2.6mm

Shear Max Load

7kg

Size Range

20mm Deep x 15mm High
