PRODUCT INFORMATION
Features/Benefits:
- D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines
- For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
- Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments
- Meets performance requirements of D.O.T. FMVSS 571.106, SAE J1131 and SAE J2494-3
- Stainless steel tube support assures maximum flow and performance requirements of SAE J2494-3
- Composite body - strong, lightweight, compact and impact resistant
- Composite body can be rotated after assembly to align shaped fittings for proper orientation
- All threads per SAE J476
- PTC fittings reduce assembly time over compression style fittings by 90%
- Quick connect push-in fitting for leak proof tube connections
- D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines
- Quick connecting push-in fittings for servicing work by fleets, repair shops and farm implement dealers
Applications:
- Air brakes
- Air tanks
- Air ride
- Sliders
- Tire inflation
- Primary & secondary air lines
- Cab controls

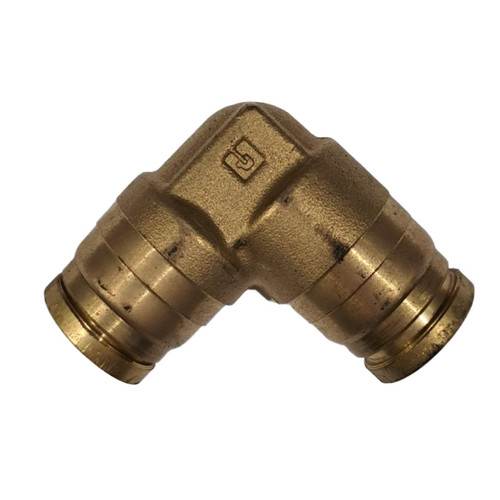

Part No
65IM6Operating Temperature Range
-40 °F, -40 °C to 200 °F, 93.3 °CConfiguration
Tube to TubeBody material
BrassShape
Elbow 90°Connection 2 Type
Push-to-ConnectConnection 1 Size
3/8''Connection 2 Size
3/8''Connection 1 Type
