# RAPTORCUT30

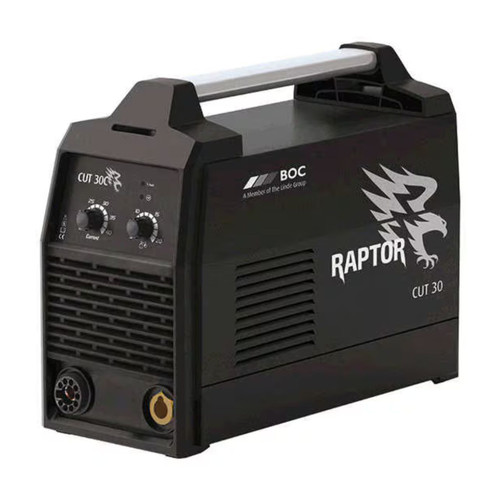

BOC Raptor Cut 30C Plasma Cutter

$642.82
$558.97 excl. GST
Adding to cart… The item has been added

Out of stock

Shipping: Available for immediate dispatch Contact your local branch for availability
PickUp:

Contact your local branch for availability

Store availability

Contact your local branch for availability

Next Day Delivery*

1 Year Warranty

Safety Approved

Need help or advice?

SKU:
RAPTORCUT30

PRODUCT INFORMATION

BOC RAPTOR CUT 30C plasma cutter is an efficient and portable single phase 10A plasma cutter that can be used safely from any domestic power outlet. Lightweight and compact, this portable inverter is easy to take to any workshop or worksite. The no-fuss RAPTOR CUT 30C provides fast and accurate cutting of 1–12 mm thickness steel and has a central connector for easy fit or removal of the plasma torch. Refer to the BOC technical data sheet for more information. Package includes:

  • Power source
  • Air filter assembly
  • Plasma torch PCH-35 style
  • Work return lead
  • BOC’s two-year replacement warranty
  • Single phase 10A plasma cutter
  • Lightweight and portable
  • Central connector for easy fit and removal of the plasma torch

Part No

RAPTORCUT30

Brand

BOC

Amps /Current

Maximum rated input current = 26.2A | Maximum effective supply current = 9.5A

Dimensions L x W x H

365×172×320mm

Input

Input Plug = 10A

Output Current

Output current range = 12.5 - 40A

Weight

7.1kg

Frequency

50 / 60Hz

Input Voltage

Single phase AC240V ±15%

Rated

Rated output voltage = 96V
